    15kg/Batch Pharmaceutical Dryers PLC Fruit Freeze Drying Machine

    Ask Lasest Price
    Brand Name : LTPM China
    Model Number : LTDG-Series
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 15 Set/Month
    Delivery Time : 25 Days
    • Product Details
    • Company Profile

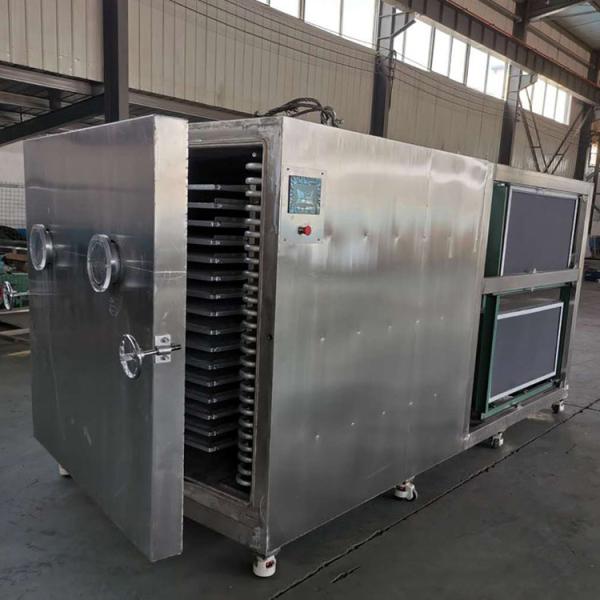

    15kg/Batch Pharmaceutical Dryers PLC Fruit Freeze Drying Machine

    High Quality Food Freeze Dryer Fruit Freeze Drying Machine For Sale


    This machine is made by a low noise antihigh temperature axial flow fan and an automatic control temperature system. The whole circulation system is fully enclosed to make that the heat efficiency of the drying machine increases from traditional 3%-7% to 35%-45%. The highest heat efficiency can reach 50%. This saves lots of energy for our country and increases the economic benefits.


    Technical Parameters

    Power167Kw, 380V±10%,50HZ,3Phase,5Wire
    Vacuum function19.8kw
    Refrigeration function92kw
    Heating function55.5kw
    Compressed air≥40L/min(P=0.5~0.8Mpa)
    Cooling water Quantity≥50m3/h(T≤30℃,P=0.2-0.3Mpa)
    Defrost water Quantity≥4000kg(T≥30℃,P=0.1-0.2Mpa)
    Whole volume(L×W×H)

    Dry chamber and Condenser:

    D=φ2100mmL=6650mm

    Freeze system vacuum system control system:

    L=2600mm W=2200mm H=2000mm

    Final dimension based on design

    StructureSplit
    Total weight15T(Approx.)

    Characters of freeze food dryer

    Most of the hot air is circulated in the herbs dehydration machine.By using the forced ventilationfuntion, there are adjustable air distribution inside the oven. The materials can be dried uniformly.


    Heating source: electricity, steam, far infrared of steam and electricity.


    Temperature allowed with this fruit vegetable dryer heat 50°C-140°C,the maximum is 150°C. Electricity heat 50-350°C.


    Automatic control system and computer control system for your choice.

    Applications :

    ♦ Vegetables: Edible mushrooms, garlic slices, scallions, green beans, peas, cucumbers, sweet corn kernels, carrots, spinach, asparagus, wild vegetables, etc.
    ♦ Aquatic products and meat: shellfish, shrimp, fish sticks, beef, pork, chicken, mutton and so on.
    ♦ Seasoning: garlic powder, ginger powder, onion powder, tomatoes, pepper.
    ♦ Instant drinks: coffee, tea, soup, soy milk, milk, etc.
    ♦ Convenience food: children's food, snack food, military camp food
    ♦ Fresh Chinese herbal medicine: ginseng, antler, medlar, notoginseng, etc.

    Quality 15kg/Batch Pharmaceutical Dryers PLC Fruit Freeze Drying Machine for sale
