    ZP - Sereies Rotary Tablet Press Machine Simple Structure Automatic

    Ask Lasest Price
    Brand Name : LTPM China
    Model Number : ZP-Sereies
    Certification : CE
    Price : Negotiation
    Payment Terms : 30% TT as deposit and 70% before shipping
    Supply Ability : 25 sets/Month
    Delivery Time : In 25 days after receiving the deposit
    • Product Details
    • Company Profile

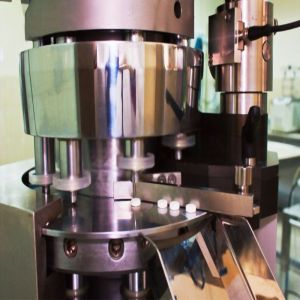

    ZP - Sereies Rotary Tablet Press Machine Simple Structure Automatic

    Automatic high-speed rotary tablet press machine
    Made of Stainless steel for all material contact parts in strict compliance with GMP requirements.
    Basic devices:
    a. PLC control system integrate with 10 inch siemens touch screen,PLC
    b. One set change mould
    c. Dust collector

    Features:
    1. Conform to GMP requirements
    2. Flameless windows installation safety glass(thick:20mm)
    3. Singel-side outlet
    4.Main pressure 80KN
    5.Pre-pressure 20KN
    6.Feeding motor adopts frequency control of speed
    7. Automatic control tablet weight
    8. Rejected one tablet and more pieces of tablets
    9. Overloading,punch tight and insufficient lubrication,can to proted
    10. Suit for round tablets, irregular tablets

    Product Specifications

    Rotary Tablet Press Machine
    Capacity
    60000-85000 tablets/hour
    Rotary speed of the turret
    14-30 rpm
    Max. Filling Depth
    17 mm
    Max.Dia of tablet
    28 mm
    Max.Thickness of tablet
    7 mm
    Max. pressure
    80 KN
    Power supply
    380V 50Hz / 220V 60Hz
    Power consumption
    3 kw
    Quantity of punching station
    23 stes
    Weight
    2000 kgs
    Overall dimension
    1300×1400×1850 mm

    Machine Details


    Main Application

    This press is a double pressing tablet press,being broadly used in the industries of pharmacy,food process and chemicals, to make granular materials, to various round tablets or special-shaped tablets.

    LTPMCHINA Can Do !
    LTPMCHINA provides integrated engineering solution for worldwide pharmaceutical and medical factory include the clean room, auto-control and monitoring system, pharmaceutical water treatment system, solution preparing and conveying system, filling and packing system, automatic logistics system, quality control system and central laboratory and etc. According to the pharmaceutical industry's regulatory requirements of different countries and customer's individual demand, LTPMCHINA carefully customizes engineering solutions of turnkey projects and helps customers to win the target markets, LTPMCHINA creates value to customers.
