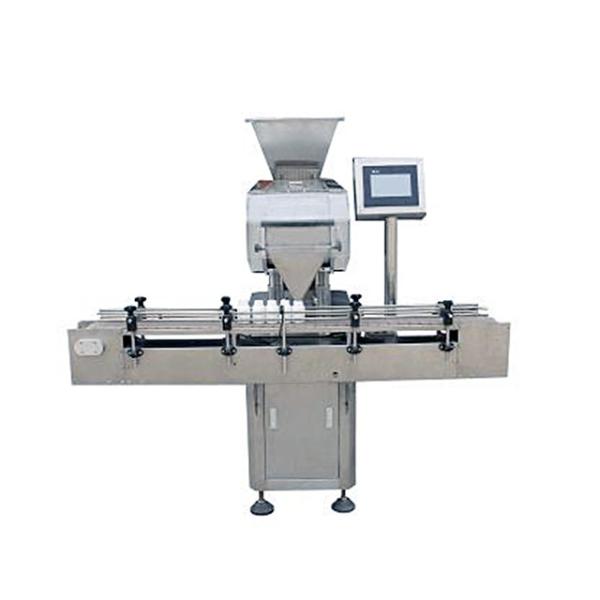

Electronic Tablet Capsule Counting And Filling Machine
Working Principle
Electronic counting machine (wide three grade)
The bottle stopper device on the bottle feeding rail of the
conveying bottle mechanism will block the bottle conveyed from the
upper device and stop at the bottling position, waiting for
filling. The medicine enters the medicine chamber through the
vibration of the feeding corrugated board, and the counting
photoelectric sensor is installed on the medicine chamber. The
medicine falling into the medicine chamber is quantitatively
counted by the photoelectric counting sensor and then loaded into
the bottle in the bottling position.
Main Feature
(1) It has strong compatibility, and can count and bottle solid
preparations or solid particles such as tablets (including shaped
tablets), capsules, soft capsules (transparent, opaque), pills;
(2) Vibrating blanking: 24 channels of vibration uniform feeding,
special patented laminating mechanism, material discharge, uniform
and stable discharge, no damage to drugs;
(3) Anti-high dust: It adopts the company's original anti-high dust
photoelectric sensor technology, which can work stably in the case
of high dust;
(4) Accurate counting: photoelectric sensor automatically counts,
the bottling error is less than the national standard;
(5) The special structure of the leaking nozzle can prevent the
drug from being blocked, and the small bottle with the bottle mouth
can also be quickly bottled (optional)
(6) High degree of intelligence, with multiple detection and alarm
control functions such as no bottle count, fault self-test;
(7) Function matching: automatic detection of bottleless
photoelectric sensor, automatic shutdown
(8) Simple operation: intelligent design, various operating
parameters are set as needed
(9) Convenient maintenance: the operator can operate with simple
training, and it is simple and convenient to disassemble, clean and
replace parts, without tools
(10) Sealed and dustproof: Configure the dust box to reduce dust
pollution (optional).
Main Specifications
Electronic counting machine (wide channel , three step vibration)
Applicable bottle type: round, square plastic bottle
Filling the object: 000~5# capsule, soft capsule, Φ5.5~25 plain
tablets, shaped tablets, sugar-coated tablets, Φ3~25 pills
Production capacity: 20 ~ 90 bottles / minute (related to bottle
specifications, loading, drug specifications)
Bottle capacity setting range: 2-9999
Power and power: AC220V 50Hz 1.5kw
Accuracy: >99.5% (better than industry standards)
Air source: 0.6Mpa
Dimensions: 1760 * 1650* 1650mm
Weight: 580kg
Main configuration List
| NO. | Name | Manufacturer |
| 1 | Motor | TQG (Taiwan) |
| 2 | Look at the bottle photoelectric eye | Matsushita, Japan |
| 3 | Counting light head | Taiwanese billion light |
| 4 | Pneumatic Components | Shanghai Star |
| 5 | Emergency stop switch | Schneider |
| 6 | HMI | Taiwanese Delta |
| 7 | Master chip | Imported British ARM Electronics |
| 8 | Switching power supply | Schneider |
