    Liquid Paste Powder Or Granule Automated Packaging Machine

    Ask Lasest Price
    Brand Name : LTPM CHINA
    Model Number : RotaTop-Series
    Certification : CE, GMP, SGS, BV
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, MoneyGram
    Supply Ability : 45 sets/month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Liquid Paste Powder Or Granule Automated Packaging Machine

    Automatic Premade Sachet/Bag/Pouch Filling Sealing Packaging Machine

    For Packing Liquid Paste Powder Or Granule

    Machine introduction:

    Rotary packing machine is developed for premade pouch, stand-up pouch with or without zipper. It is suitable for packing product of powder, irregular shape, thick liquid and liquid, such as gourmet powder, chicken powder, seasoning powder, candy, fruits, nut, pet food, roasted seeds, puffed food, frozen food, small hardware and hand sanitizer.

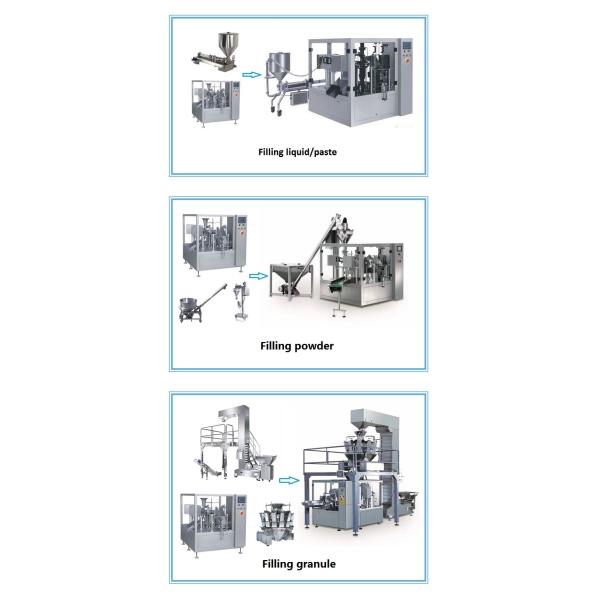

    Option Part of Weighing&Packing System

    *Z Type Bucket Elevator--- --------------------------for conveying material( Not for Powder)

    *Multihead Weigher( 10head, 14head, 20head...) ---------------for weighing(not powder)

    *Screw Conveor & Auger Filler---------------------This is for Powder material Conveying

    *Working Platform 304 stainless steel-------------------------------for supporting equipment

    *Finished Product Conveyor------------for conveying and collecting of finished product.

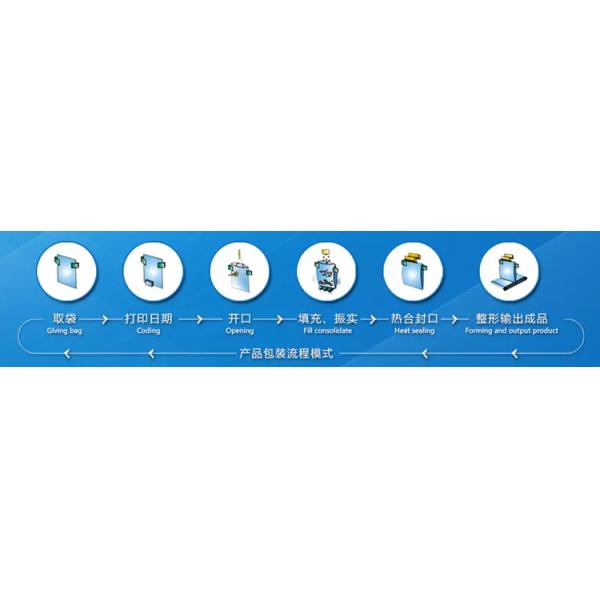

    Working Process:

    1. Giving bag:Power on, suction tip adsorbs the bag, the arm folder clamps the dial folder on the first working position.
    2.Coding: The machine run to the second working position, it codes the bag.
    3. Opening bag:The machine run to the third working position, it opens the bag.
    4.Filling: The machine runs to the fourth working position, it fills the bag.
    5.Sealing: The machine runs to the fifth working position, it checks if the bag is filled with material, then it seals the bag.
    6.Forming & output packages: The machine runs to the sixth working position, it cools the bag mouth and forms& output packages. The above process carried out simultaneously by cycle


    Technical Parameters:

    Working position

    eight-working position

    Pouch material

    Laminated film PE,PP

    Pouch pattern

    stand-up&zipper pouch

    Pouch size

    W:100-210mm L:100-350mm

    Filling Scope

    10-5000g( The screw attachment is to be changed)

    Weight Accuracy

    Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5%

    Speed

    10-45pouches/min(The speed depends on the product status and flling weight))

    Voltage

    380V 3phase 50HZ/60HZ

    Total power

    8.5KW

    Compress air

    0.6m3/min(supply by user)

    Size

    1900*1570*1700mm
